Midwest Optical : BP695
Description
Midwest Optical Infrared Bandpass Filter BP695
Available Models Include:
| BP695-25.4 |
| BP695-13.25 |
| BP695-22.5 |
| BP695-25.5 |
| BP695-27 |
| BP695-30.5 |
| BP695-34 |
| BP695-35.5 |
| BP695-37 |
| BP695-37.5 |
| BP695-40.5 |
| BP695-43 |
| BP695-46 |
| BP695-49 |
| BP695-52 |
| BP695-55 |
| BP695-58 |
| BP695-62 |
| BP695-67 |
| BP695-72 |
| BP695-77 |
| BP695-82 |
| BP695-86 |
| BP695-95 |
| BP695-105 |
Features
→Test effects of IR lighting on an application
→Optimize results achieved with IR lighting/fluorescence
→Block all UV and visible light
→Shields systems from unwanted light
→Enhance contrast for improved viewing of desired features
→Improve resolution in the IR (chromatic aberration correction)
→Suitable for laser diodes
Specifications
Full Width Half Max (50% point) +/- 10nm: 665-730nm
Min Peak Trans: 90%
Surface Quality Scratch & Dig: 40/20
Mount Options: T=Standard Threaded Lens Mount; S=Slip-On Mount; C=C/CS-Camera Mount (M25.4); F=Filter, No Mount
Resources & Documents

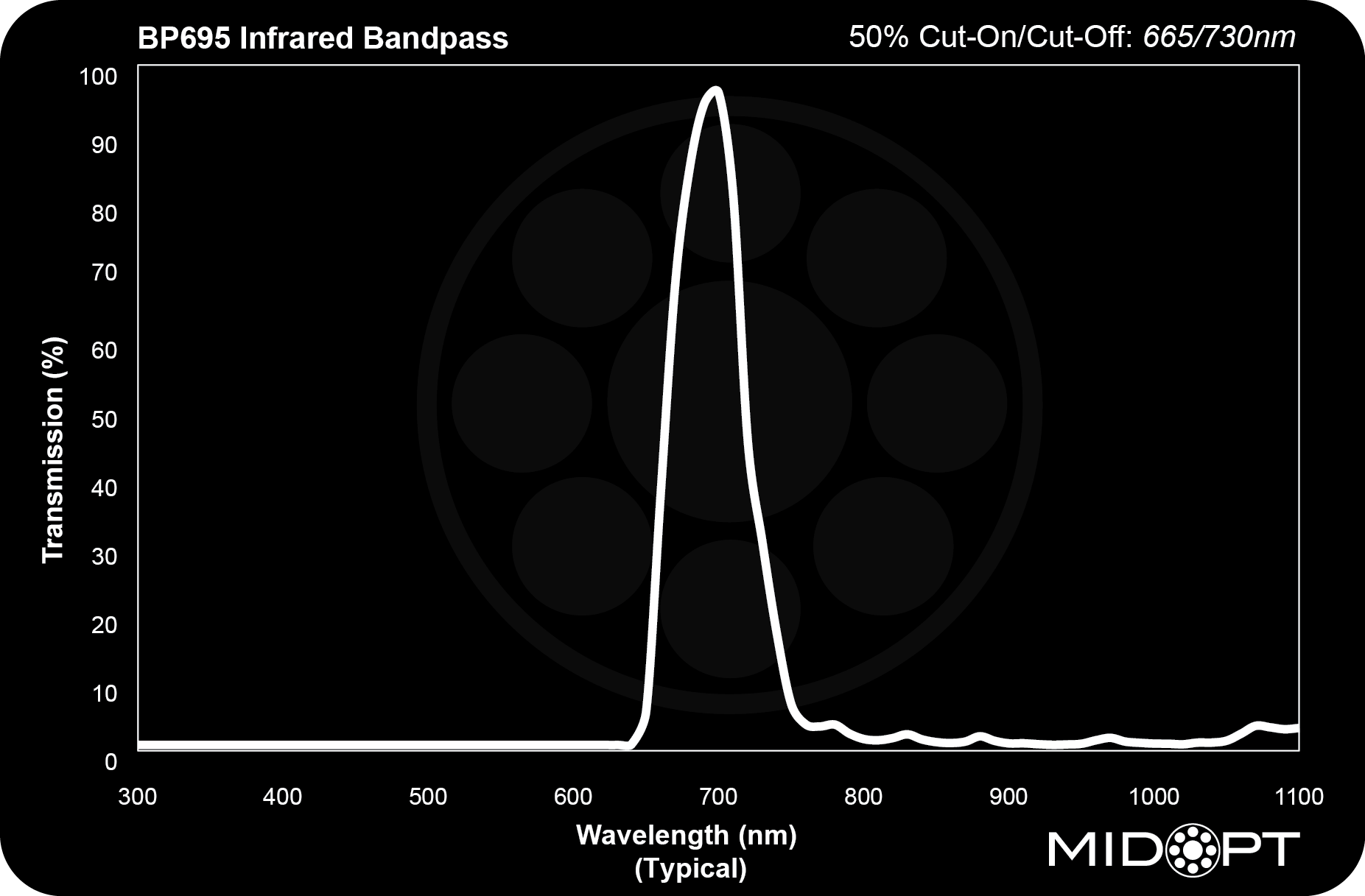

| midopt_bp695_curve.png | Curve Graph |
