Midwest Optical : BP250
Description
Ultra-Violet Bandpass Filters for UV Imaging, Mid-Opt BP250
UV Bandpass Filters pass selective ultra-violet wavelength ranges. It is always necessary to use UV pass/visible block filters in applications that involve imaging at UV wavelengths.
Available Models:
| BP250-25.4 |
| BP250-13.25 |
| BP250-22.5 |
| BP250-25.5 |
| BP250-27 |
| BP250-30.5 |
| BP250-34 |
| BP250-35.5 |
| BP250-37 |
| BP250-37.5 |
| BP250-40.5 |
| BP250-43 |
| BP250-46 |
| BP250-49 |
| BP250-52 |
| BP250-55 |
| BP250-58 |
| BP250-62 |
| BP250-67 |
| BP250-72 |
| BP250-77 |
| BP250-82 |
| BP250-86 |
| BP250-95 |
| BP250-105 |
Specifications
Full Width Half Max (50%) Points: 170-275nm
38% min. peak transmission
40/20 surface quality scratch & dig
Mount Options: T=Standard Threaded Lens Mount; S=Slip-On Mount
Resources & Documents

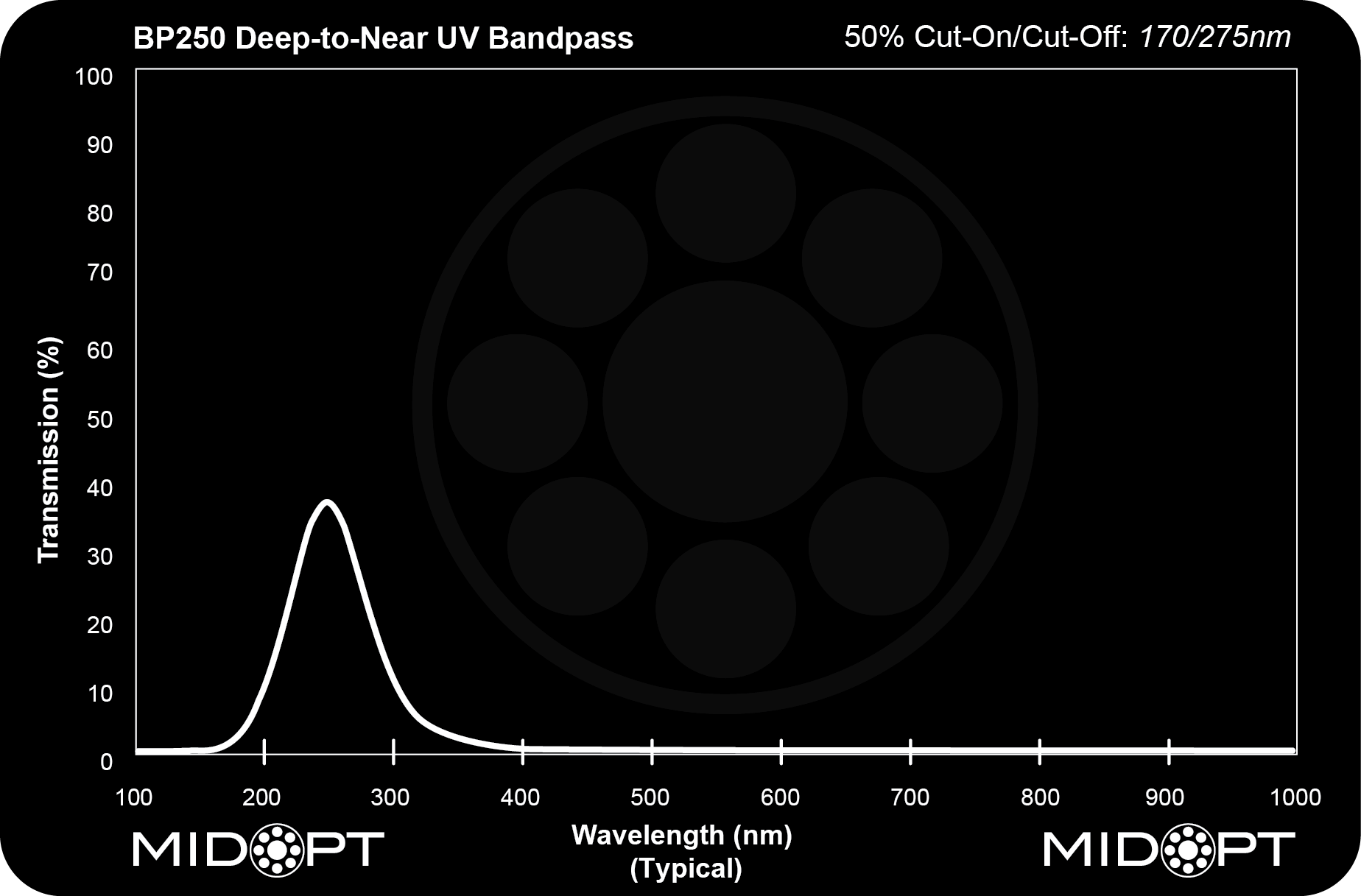

| midopt_bp250_curve.png | Curve Graph |
